Masimo Rad 97 Pulse CO-Oximeter
Masimo Rad 97 Pulse CO-Oximeter
- Low stock - 5 items left
- Inventory on the way
- FREE 48 hour delivery for orders £50+
- Eligible for VAT relief
- Official Supplier to the NHS
- Secure payments

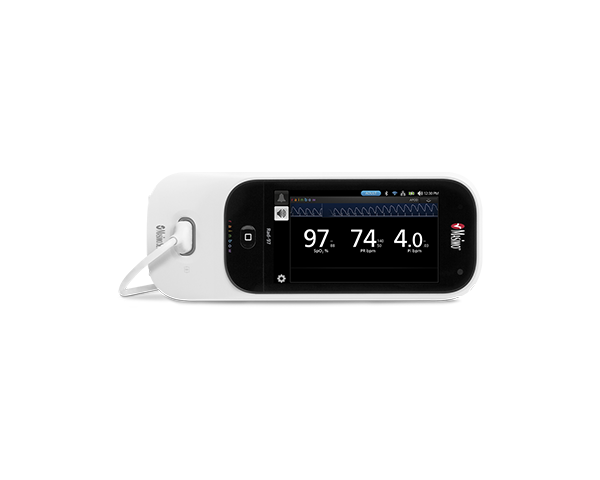

The Masimo Rad-97 is a compact, portable bedside pulse oximeter designed for continuous, non-invasive monitoring of oxygen saturation and pulse rate. It uses Masimo SET® Measure-through Motion and Low Perfusion™ technology, helping provide dependable readings when patients are moving or have weak peripheral perfusion.
Its high-resolution colour touchscreen can be customised to display the most clinically relevant measurements, waveforms and trends. Automatic screen rotation, ambient-light brightness adjustment and colour-coded adult, paediatric and neonatal profiles make the monitor suitable for a wide range of clinical environments.
The standard Rad-97 displays SpO₂, pulse rate, perfusion index and Pleth Variability Index. It can also be configured or upgraded with Masimo rainbow® measurements, subject to the installed software, compatible patient cable and appropriate sensors.
Main features
- Continuous SpO₂ and pulse-rate monitoring
- Masimo SET® motion and low-perfusion performance
- High-resolution colour multi-touch display

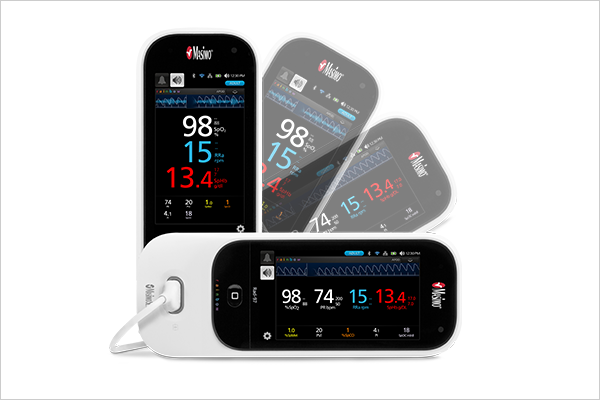

- Automatic screen rotation and brightness adjustment
- Plethysmographic waveform display
- Adult, paediatric and neonatal profiles
- Up to 96 hours of trend data
- Adjustable audible and visual alarms
- Rechargeable internal battery
- Built-in Wi-Fi, Ethernet, USB, Bluetooth Low Energy and nurse-call connectivity
- Suitable for mounting on an optional mobile roll stand

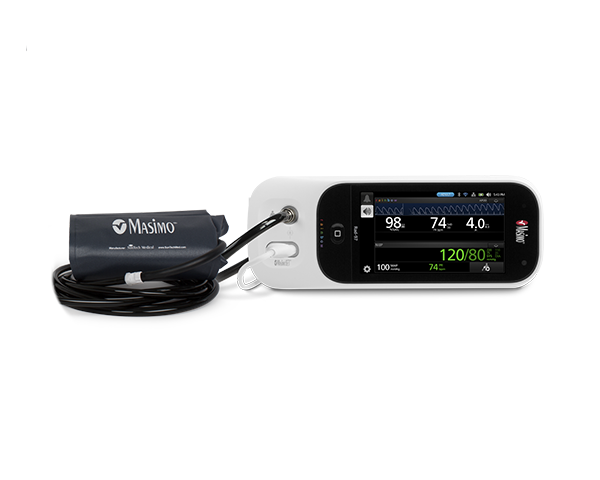

- Optional versions incorporating NIBP or NomoLine® capnography
Standard measurements
| Measurement | Description |
|---|---|
| SpO₂ | Functional arterial oxygen saturation |
| PR | Pulse rate |
| PI | Perfusion Index |
| PVi® | Pleth Variability Index |
Upgradeable measurements
Availability depends on the monitor’s configuration, licences, cables and sensors.
| Measurement | Description |
|---|---|
| SpHb® | Non-invasive total haemoglobin |
| SpCO® | Carboxyhaemoglobin |
| SpMet® | Methaemoglobin |
| SpOC™ | Oxygen content |
| ORi® | Oxygen Reserve Index |
| RRa® | Acoustic respiration rate |
| RRp® | Respiration rate derived from the pleth waveform |
Technical specification
| Specification | Details |
|---|---|
| SpO₂ measurement range | 0–100% |
| Stated SpO₂ accuracy range | 70–100% |
| SpO₂ accuracy, no motion | ±2% adults, paediatrics and infants; ±3% neonates |
| SpO₂ accuracy during motion | ±3% |
| SpO₂ accuracy at low perfusion | ±2% |
| Pulse-rate range | 25–240 bpm |
| Pulse-rate accuracy, no motion | ±3 bpm |
| Pulse-rate accuracy during motion | ±5 bpm |
| Pulse-rate accuracy at low perfusion | ±3 bpm |
| SpHb range | 8–17 g/dL; stated accuracy ±1 g/dL |
| SpCO range | 1–40%; stated accuracy ±3% |
| SpMet range | 1–15%; stated accuracy ±1% |
| RRa/RRp range | 4–70 respirations per minute |
| Trend memory | Up to 96 hours |
| Display | High-resolution colour LCD multi-touch display |
| Battery | Rechargeable lithium-ion |
| Approximate battery runtime | Up to 7 hours under specified low-power conditions |
| Approximate charging time | 3 hours |
| Power supply | 110–220 V AC, 47–63 Hz |
| Dimensions | 22.9 × 16.5 × 10.2 cm |
| Weight | Less than 1.36 kg |
| Operating temperature | 0°C to 35°C |
| Atmospheric pressure | 540–1,060 mbar |
| Protection rating | IP21 |
| Applied part | Type BF, defibrillation-proof |
| Operating mode | Continuous operation |
| Connectivity | Wi-Fi, Bluetooth LE, Ethernet, USB and nurse-call interface |
